Clad-rack cold storage: the best growth option for a leading Mexican manufacturer of horticultural products

Fruvemex prepares chilled and frozen fruits and vegetables, with a wide selection of top quality products. Since its founding in 1986, it has continued to grow and expand its market, located mainly in the United States, Canada and Mexico.

In January of 2013, the company requested the collaboration of Mecalux to find the best solution to store all the products in its modern production center in Rosarito, within the agricultural region of the Baja California (Mexico). After analyzing the needs and characteristics of the company in detail, the decision was made to construct a 43’ high clad-rack cold storage installation with a capacity of over 1,900 pallets.

Clad-rack construction

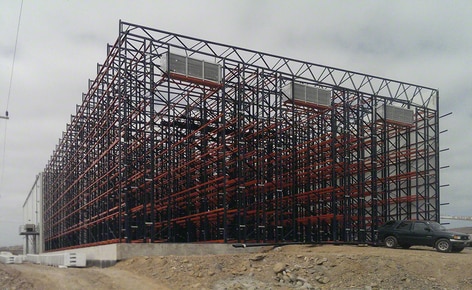

The clad-rack warehouses are buildings formed by the racking themselves whose structure is where the vertical cladding and the roofing are placed. Mecalux chose this solution for Fruvemex because of its suitability for cold and frozen storage. The reason is its simplistic construction, it only occupies the space and volume that is strictly required. This represents considerable savings in power costs to keep the facility permanently at the same temperature.

The entire structure is mounted on top of a concrete slab that favors the insulation of the floor with the sides of the building. The cladding and the warehouse doors have the proper thickness for the temperature they operate with inside.

Once again, in August of 2013, Fruvemex hired Mecalux to build some new cold storage with features similar to the first, and which would share the loading and unloading docks. Sometime later, the second cold storage was extended in length (cold storage 3) to obtain a capacity of 1,888 more pallets.

The first warehouse is set up to expand when necessary. This project will address the future growth of the company and adapt to market developments.

Cooling equipment

In the three cold storage, there are cooling devices placed directly on the structure without having to perforate the cladding (unlike traditionally constructed warehouses). The position of the evaporators coincides with the main aisle.

Connecting the cold storage

The three Fruvemex cold storage installations are interconnected. In warehouses 1 and 2, an underpass was opened that cuts across the racking and connects to a traditionally constructed building where the loading and unloading docks are located.

In the connected cold storage 2 and 3 a portion of the cladding was removed from each of the aisles to facilitate the movement of the forklifts.

Double-depth

The cold storage installations consist of three aisles with 36’ high double-depth racking on both sides. In this system, two pallets are deposited – one behind another – on the same side of the aisle, which allows for increased storage capacity. It is a highly recommended solution, mainly when there are several pallets of the same SKU.

Handling equipment

Double-depth pallet racks require specific lift equipment to handle the goods. In these warehouses, the reach trucks used incorporate a scissor or pantograph system in the fork carriage. The mast is fixed and does not retract, instead the pantograph extends to reach the second pallet in each location.

Advantages for Fruvemex

• Maximum use of space: the three Fruvemex cold storage installations are clad-rack constructed and occupy only the essential space and volume, reducing the consumption of power needed to keep a constant temperature.
• Massive capacity: the racking installed in all three cold storage installations, altogether, offers a storage capacity of 5,728 pallets of 40” x 48” with a maximum weight of 1.1 t each.
• Future growth: the first installation is set up to be extended with a new clad-rack warehouse in anticipation of Fruvemex’s future needs.
